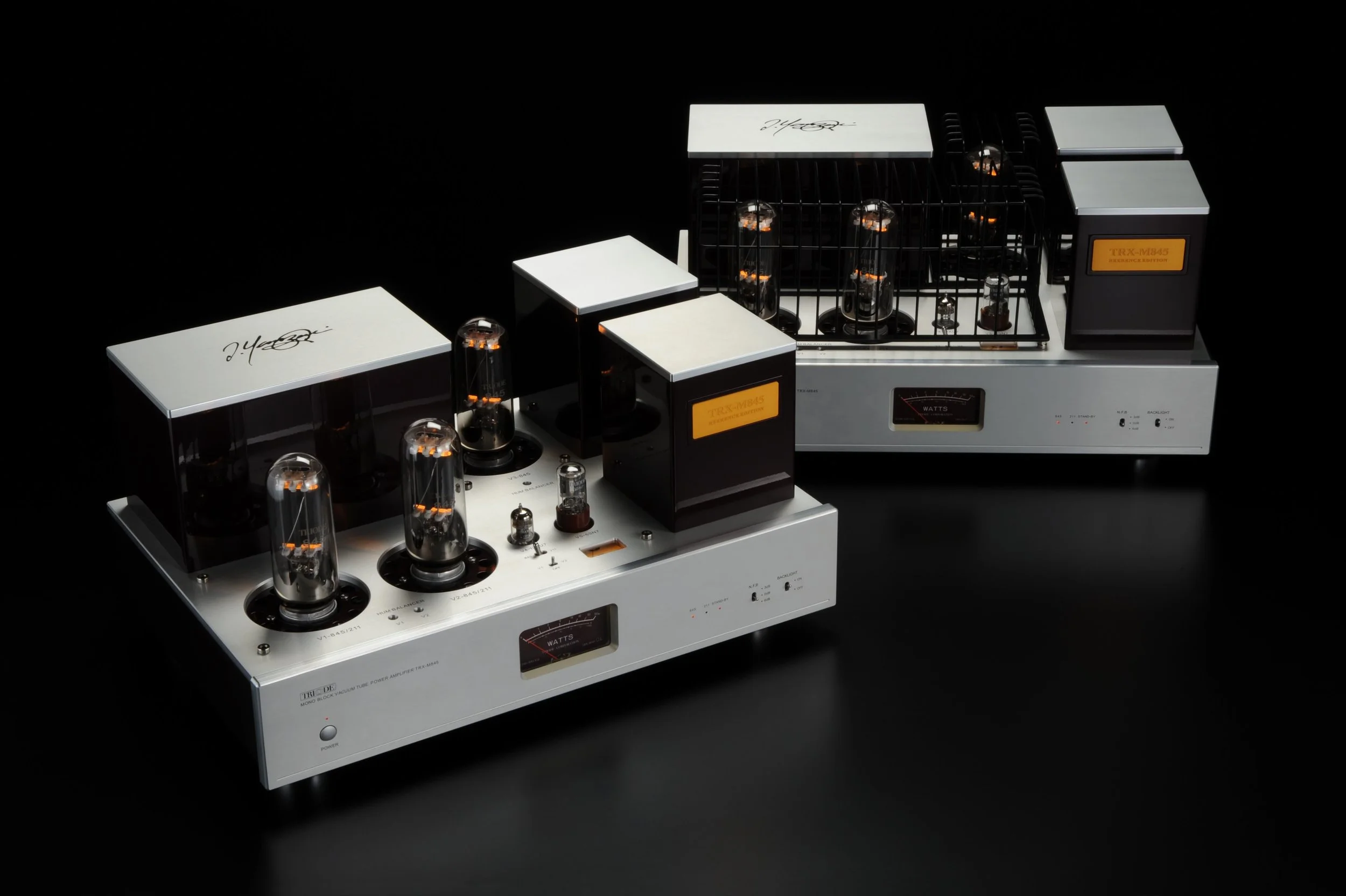

TRX-M845

Monoblock Power Amplifier

Driven by 845 or 211 tubes driving 845 in parallel Single Ended Class A design with Auto bias.

Specifications:

  • Maximum output:  Class A 50 Watts at 8 Ohm
  • Output Impedance:  4 / 6 / 8 / 16 ohm
  • Frequency response: 10Hz- 50 kHz (0,-3dB)
  • Total distortion:  < 0.1%(1kHz)
  • SN level: 89dB
  • Input sensitivity 0.8V
  • Tubes:  845 * 3 , 6SN7 * 1 ,12AU7 * 1
  • Input terminals: one pair RCAand   one pair XLR
  • Power Consumption: 380 watts
  • Dimension: 580W x 300H x 440Dmm, Weight: 55 kgs
  • Compliment:  Three 845 tubes, One 211 tubes, one 6SN7, one 12AU7, tube cage, power cable, spare fuses
