TRX-EQ6

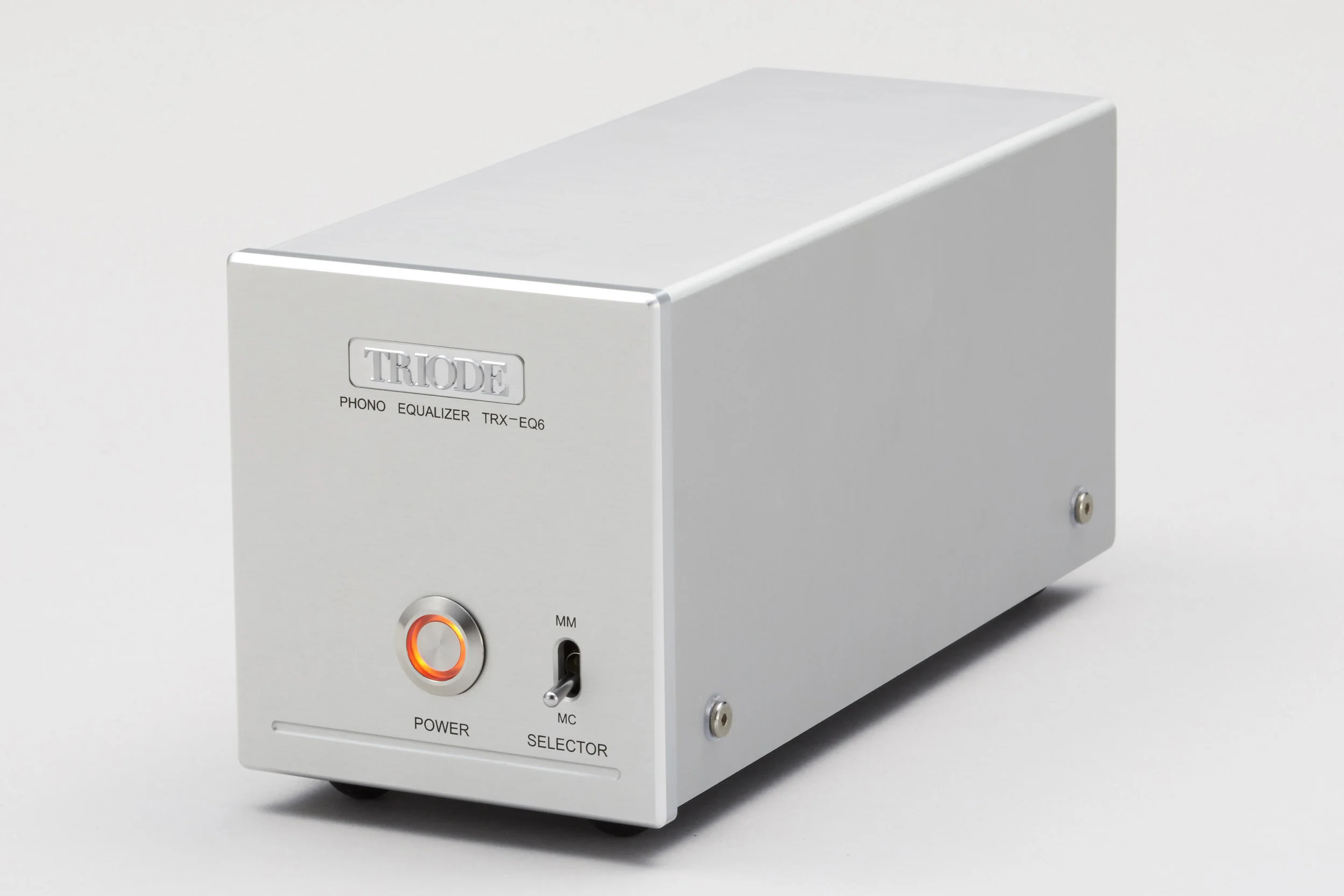

TRX-EQ6 Phono Equalizer:

Specifications:

  • Circuit FET Class A
  • Frequency Response: 20Hz-20kHz
  • Total Distortion: 0.25%
  • Channel Separation: 70dB
  • Input Sensitivity: MM 2.5mV and MC 0.25mV
  • Gain: MM 36dB and MC 55dB
  • Input Impedance:    MM 47kOhm & MC 2 - 47 Ohm
  • Output Terminal: one Pair RCA
  • Output Impedance: 50 oHms
  • Power consumption-3 watts
  • Dim: W90 x D230 x H 100 ( mm), WT: 1.6 Kg
