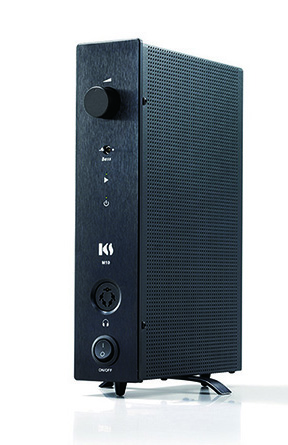

M-10

Headphone Amplifier


Specifications:

  • Frequency Response: 1Hz - 50KHz (-3dB at 50Vrms out)
  • Input Impedance: 24kΩ
  • Rated Input Level: 150mV (100V Output)
  • Max. Output Voltage: >300Vrms (<1% THD)
  • Signal to Noise Ratio: >100dB (re. 100V output A-weighted)
  • Bass Boost: +9dB at 20Hz, +3dB at 100Hz
  • Gain: 58dB
  • Harmonic distortion: 0.01%(at 100Vrms/1kHz output)
  • Dimension (mm): 170(W) * 265(H) * 60(D)
  • Weight: 2.3kg
